Highlight 20 GB

Details

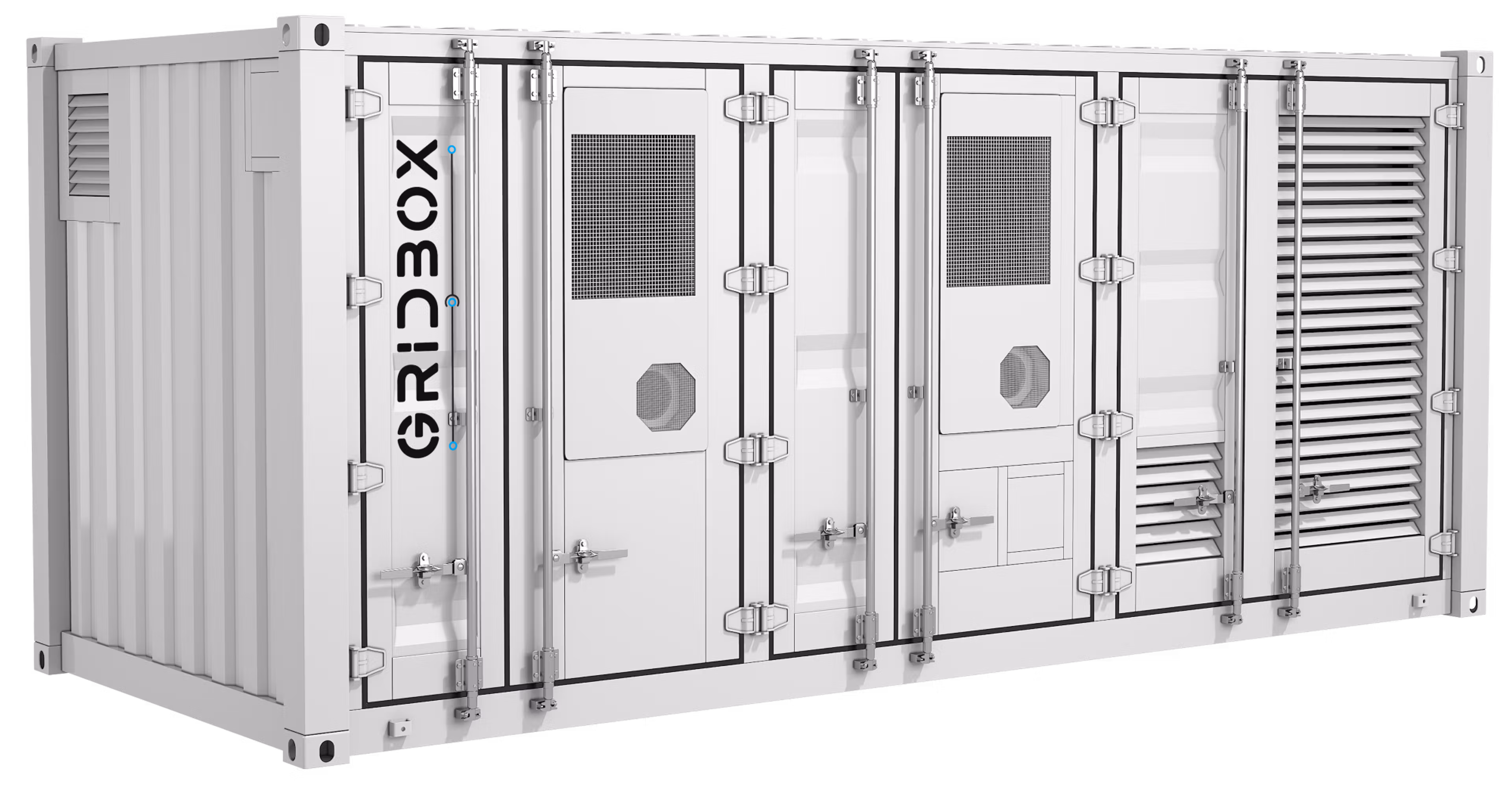

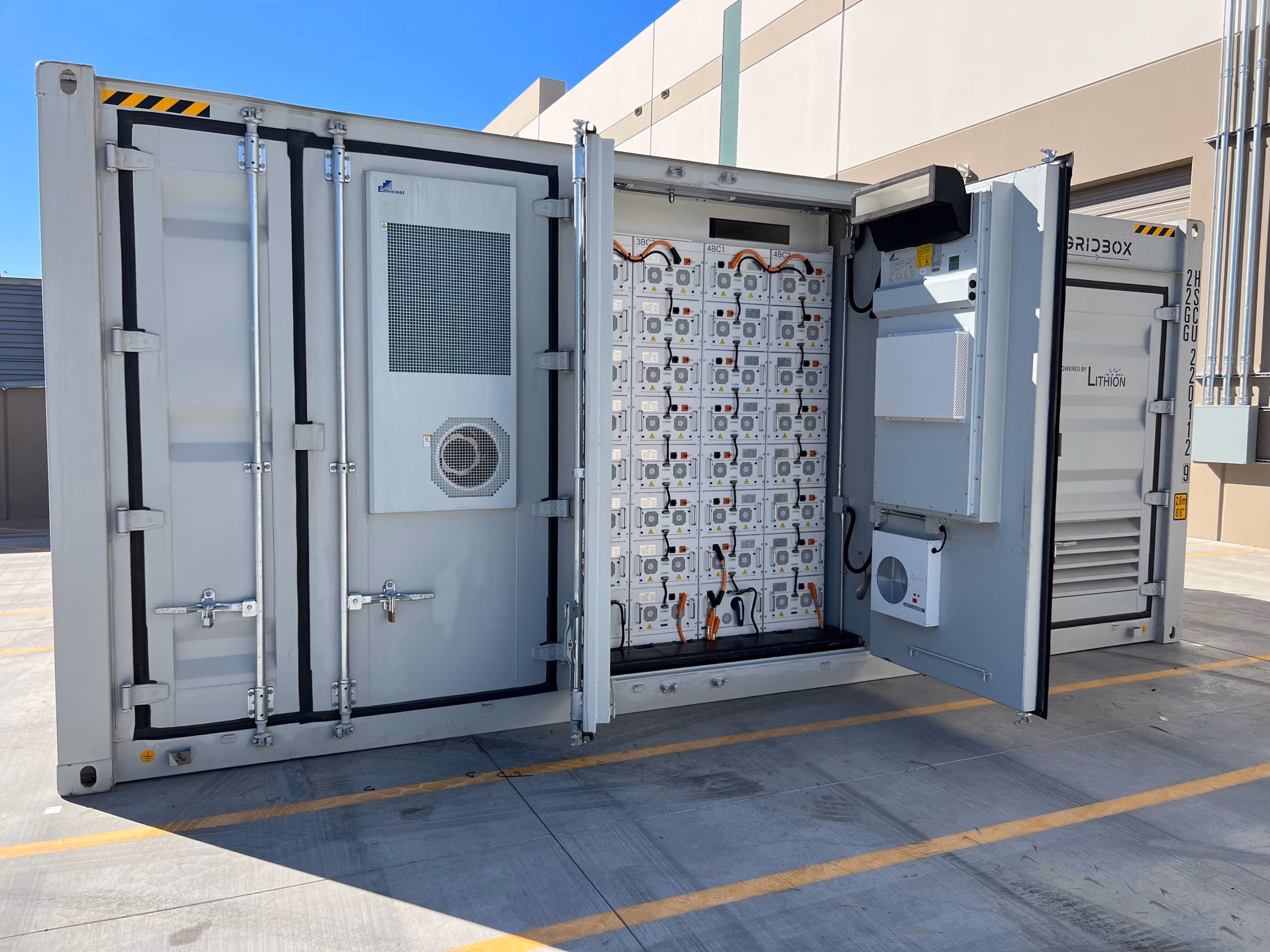

Gridbox 20GB Battery Energy Storage System (BESS) is a high-energy-density product specifically designed for Utility, Commercial & Industrial applications. The 20GB BESS Solution includes our LFP Prismatic Module Strings, bi-directional inverter, isolation transformer, fire detection/suppression system, thermal management system, overcurrent protection, and our Gridbox Control System. The purpose-built enclosure's environmental control system increases service life of the battery system. Intelligent battery management technology is leveraged to improve the safety of the system and its lifespan. Output: up to 1 MW Surge: up to 1.25 MW (1min ) Capacity: up to 2 MW Proprietary Thermal Management System down to the cell level. 480V & 690V 3-phase capable Purpose built enclosure

Features

- Fully Integrated Package
- Four Levels of proprietary protection
- All Access Monitoring with The “G.E.M.”
- Bi-directional inverter
- BESS Energy Management System (EMS)
- Thermal Management System (TMS)
- Isolation Transformer for coupling to customer electrical system (internal or external)
- Serves several applications
- Grid Forming (Black Start/Grid Islanded)
- Grid Following (Utility paralleled)
- AC and DC coupling of renewables

‍

Under Lithion we helped, pioneer the manufacturing process that led to the commercialization of Lithium Iron Phosphate (LFP) technologies. Lithion’s 20 plus years of experience using LFP chemistry allows the GridBox product line to leverage Lithion’s expertise by providing inherently safe BESS technology.
